#include <response.h>

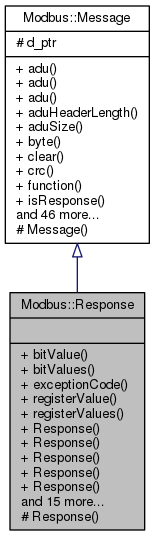

Inheritance diagram for Modbus::Response:

Public Types
typedef int(*	Callback) (Message msg, Device sender)
	Message callback function. More...

Public Member Functions
uint8_t *	adu ()
	Returns the underlying ADU bytes pointer.

const uint8_t *	adu () const

uint8_t	adu (uint16_t i)
	Returns the ADU byte corresponding to the index provided. More...

uint16_t	aduHeaderLength () const
	Return the ADU header length.

size_t	aduSize () const
	returns the number of bytes of the ADU

bool	bitValue (uint16_t index) const
	Returns a bit value of the response. More...

void	bitValues (uint16_t index, uint16_t quantity, bool *values) const
	Returns bit values of the response. More...

uint8_t	byte (int pduOffset) const
	Returns the PDU byte corresponding to the offset provided. More...

void	clear ()
	Empties the message and returns it to the initial state.

uint16_t	crc () const
	Return the CRC read in the message. More...

ExceptionCode	exceptionCode () const
	Returns the exception code of the response. More...

Function	function () const
	Returns the function of the request. More...

bool	isResponse () const
	Returns true if the message is a response.

uint16_t	maxAduLength () const
	Return the maximum ADU length.

Net	net () const
	Underlying layer used (backend) More...

bool	operator!= (const Message &other)
	Difference operator.

bool	operator== (const Message &other)
	Equality operator.

uint8_t *	pdu ()
	Returns the underlying ADU bytes pointer.

const uint8_t *	pdu () const

uint8_t	pdu (uint16_t i) const
	Returns the ADU byte corresponding to the index provided. More...

bool	prepareToSend ()
	Prepare the message before sending. More...

void	print (std::ostream &os=std::cout) const
	Prints all bytes of the message on the output stream provided. More...

void	print (std::ostream &os, char prefix, char suffix) const
	Prints all bytes of the message on the output stream provided. More...

uint16_t	quantity () const
	Returns the number of elements of the request. More...

uint16_t	registerValue (uint16_t index) const
	Returns a register value of the response. More...

void	registerValues (uint16_t index, uint16_t quantity, uint16_t *values) const
	Returns register values of the response. More...

	Response (NetLayer &backend)
	Constructors.

	Response (const Request &req)
	Copy Constructors.

	Response (Request &&req)
	Move Constructors.

void	setAduSize (size_t size)
	Change the size of the ADU. More...

void	setBitValue (uint16_t index, bool value)
	Sets a bit value for the response. More...

void	setBitValues (uint16_t index, uint16_t quantity, const bool *values)
	Sets bit values for the response. More...

void	setByte (int pduOffset, uint8_t value)
	Write a byte in the PDU to the supplied offset. More...

void	setByteCount (uint8_t n)
	Sets the byte count for the response. More...

void	setExceptionCode (ExceptionCode code)
	Sets the exception code for the response. More...

void	setFunction (Function func)
	Sets the function of the request. More...

void	setPdu (const uint8_t *data, size_t len)
	Set the PDU data. More...

void	setPdu (const Message &src)

void	setQuantity (uint16_t n)
	Sets the number of elements of the request. More...

void	setRegisterValue (uint16_t index, uint16_t value)
	Sets a register value for the response. More...

void	setRegisterValues (uint16_t index, uint16_t quantity, const uint16_t *values)
	Sets register values for the response. More...

void	setResponseFlag (bool flag=true)
	Sets the response flag. More...

void	setSize (size_t size)
	Change the size of the PDU. More...

void	setSlaveId (int id)
	Sets the number of the slave concerned by the request. More...

void	setStartingAdress (uint16_t addr)
	Sets the starting address of the request. More...

void	setTransactionIdentifier (uint16_t tid)
	Sets TCP/IP transaction identifier. More...

void	setWord (int pduOffset, uint16_t value)
	Write a word in the PDU to the supplied offset. More...

size_t	size () const
	returns the number of bytes of the PDU More...

int	slave () const
	Returns the number of the slave concerned by the request. More...

uint16_t	startingAddress () const
	Returns the starting address of the request. More...

void	swap (Message &other)
	Swaps Message other with this Message. This operation is very fast and never fails.

uint16_t	transactionIdentifier () const
	Returns TCP/IP transaction identifier. More...

uint16_t	word (int pduOffset) const
	Returns the PDU word corresponding to the offset provided. More...

Detailed Description

Modbus Response Message.

Author: Pascal JEAN, aka epsilonrt

Copyright: GNU Lesser General Public License

Examples:: server/callback-server-json/main.cpp.

Member Typedef Documentation

◆ Callback

typedef int(* Modbus::Message::Callback) (Message *msg, Device *sender)

inherited

Message callback function.

Parameters

msg

Returns: 1 if the message has been completely processed, 0 if the message has not been processed, -1 if error.

Member Function Documentation

◆ adu() [1/2]

const uint8_t* Modbus::Message::adu ( ) const

inherited

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

◆ adu() [2/2]

uint8_t Modbus::Message::adu ( uint16_t i )

inherited

Returns the ADU byte corresponding to the index provided.

i must be between 0 and maxAduLength()-1

◆ bitValue()

bool Modbus::Response::bitValue ( uint16_t index ) const

Returns a bit value of the response.

Can be used for the functions Read Coils(01), Read Discrete Inputs(02). This value is at the pdu[2 + index*2].

◆ bitValues()

void Modbus::Response::bitValues	(	uint16_t	index,
		uint16_t	quantity,
		bool *	values
	)		const

Returns bit values of the response.

Can be used for the functions Read Coils(01), Read Discrete Inputs(02). This value is at the pdu[2 + index*2].

◆ byte()

uint8_t Modbus::Message::byte ( int pduOffset ) const

inherited

Returns the PDU byte corresponding to the offset provided.

pduOffset has a maximum value of MaxPduLength-1, it can have a negative value in order to access the bytes of the ADU that precedes the PDU.

◆ crc()

uint16_t Modbus::Message::crc ( ) const

inherited

Return the CRC read in the message.

throw an std::domain_error exception if net()!=Rtu, an std::invalid_argument exception if aduSize()<4.

◆ exceptionCode()

ExceptionCode Modbus::Response::exceptionCode ( ) const

Returns the exception code of the response.

Can be used for all functions. This value is at the pdu[1].

◆ function()

Function Modbus::Message::function ( ) const

inherited

Returns the function of the request.

Can be used for all functions. This value is at the offset[0] of the PDU

Examples:: server/callback-server-json/main.cpp.

◆ net()

Net Modbus::Message::net ( ) const

inherited

Underlying layer used (backend)

This function allows to know the underlying layer used.

◆ pdu() [1/2]

const uint8_t* Modbus::Message::pdu ( ) const

inherited

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

◆ pdu() [2/2]

uint8_t Modbus::Message::pdu ( uint16_t i ) const

inherited

Returns the ADU byte corresponding to the index provided.

i must be between 0 and (maxAduLength() - aduHeaderLength() - 1)

◆ prepareToSend()

bool Modbus::Message::prepareToSend ( )

inherited

Prepare the message before sending.

This function updates the ADU header or adds the CRC at the end depending on the network used.

If the message is a request transmitted over TCP, it needs a transaction identifier. If the backend is defined by the constructor, the TCP transaction identifier is provided by the backend and will therefore be consistent on the network, otherwise, it is the message that provides this value (which may be inconsistent on the network...)

◆ print() [1/2]

void Modbus::Message::print ( std::ostream & os = std::cout ) const

inherited

Prints all bytes of the message on the output stream provided.

The bytes printed are preceded by the character '<' and followed '>' if the message is a request, and preceded by the character '[' and followed '[' if the message is a response.

for debugging.

◆ print() [2/2]

void Modbus::Message::print	(	std::ostream &	os,
		char	prefix,
		char	suffix
	)		const

inherited

Prints all bytes of the message on the output stream provided.

The bytes printed are preceded by the character prefix and followed by the suffix.

for debugging.

◆ quantity()

uint16_t Modbus::Message::quantity ( ) const

inherited

Returns the number of elements of the request.

Can be used for the functions Read Coils(01), Read Discrete Inputs(02), Read Holding Registers(03), Write Multiple Coils(15) and Write Multiple Registers(16). This value is at the offset[3] of the PDU

Examples:: server/callback-server-json/main.cpp.

◆ registerValue()

uint16_t Modbus::Response::registerValue ( uint16_t index ) const

Returns a register value of the response.

Can be used for the functions Read Holding Registers(03) and Read Input Register(04). This value is at the pdu[2 + index*2].

◆ registerValues()

void Modbus::Response::registerValues	(	uint16_t	index,
		uint16_t	quantity,
		uint16_t *	values
	)		const

Returns register values of the response.

Can be used for the functions Read Holding Registers(03) and Read Input Register(04). This value is at the pdu[2 + index*2].

◆ setAduSize()

void Modbus::Message::setAduSize ( size_t size )

inherited

Change the size of the ADU.

Enables the size of the PDU to be forced if the ADU buffer contains information that must be kept.

◆ setBitValue()

void Modbus::Response::setBitValue	(	uint16_t	index,
		bool	value
	)

Sets a bit value for the response.

Can be used for the functions Read Coils(01), Read Discrete Inputs(02). This value is at the pdu[2 + index*2].

◆ setBitValues()

void Modbus::Response::setBitValues	(	uint16_t	index,
		uint16_t	quantity,
		const bool *	values
	)

Sets bit values for the response.

Can be used for the functions Read Coils(01), Read Discrete Inputs(02). This value is at the pdu[2 + index*2].

◆ setByte()

void Modbus::Message::setByte	(	int	pduOffset,
		uint8_t	value
	)

inherited

Write a byte in the PDU to the supplied offset.

pduOffset has a maximum value of MaxPduLength-1, it can have a negative value in order to access the bytes of the ADU that precedes the PDU.

◆ setByteCount()

void Modbus::Response::setByteCount ( uint8_t n )

Sets the byte count for the response.

Can be used for the functions Read Coils(01), Read Discrete Inputs(02), Read Holding Registers(03), Read Input Register(04). This value is at the pdu[1].

Examples:: server/callback-server-json/main.cpp.

◆ setExceptionCode()

void Modbus::Response::setExceptionCode ( ExceptionCode code )

Sets the exception code for the response.

Can be used for all functions. This value is at the pdu[1].

◆ setFunction()

void Modbus::Message::setFunction ( Function func )

inherited

Sets the function of the request.

Can be used for all functions. This value is at the offset[0] of the PDU

◆ setPdu() [1/2]

void Modbus::Message::setPdu	(	const uint8_t *	data,
		size_t	len
	)

inherited

Set the PDU data.

Copy data to the PDU message, set the PDU size.

◆ setPdu() [2/2]

void Modbus::Message::setPdu ( const Message & src )

inherited

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

◆ setQuantity()

void Modbus::Message::setQuantity ( uint16_t n )

inherited

Sets the number of elements of the request.

Can be used for the functions Read Coils(01), Read Discrete Inputs(02), Read Holding Registers(03), Read Input Register(04), Write Multiple Coils(15) and Write Multiple Registers(16). This value is at the offset[3] of the PDU

◆ setRegisterValue()

void Modbus::Response::setRegisterValue	(	uint16_t	index,
		uint16_t	value
	)

Sets a register value for the response.

Can be used for the functions Read Holding Registers(03) and Read Input Register(04). This value is at the pdu[2 + index*2].

Examples:: server/callback-server-json/main.cpp.

◆ setRegisterValues()

void Modbus::Response::setRegisterValues	(	uint16_t	index,
		uint16_t	quantity,
		const uint16_t *	values
	)

Sets register values for the response.

Can be used for the functions Read Holding Registers(03) and Read Input Register(04). This value is at the pdu[2 + index*2].

◆ setResponseFlag()

void Modbus::Message::setResponseFlag ( bool flag = true )

inherited

Sets the response flag.

This flag indicates that the message is a response, it allows to keep the instance of the request to make a response. This could be useful in order to keep the transaction identifier intact in the case of a TCP ADU.

◆ setSize()

void Modbus::Message::setSize ( size_t size )

inherited

Change the size of the PDU.

Enables the size of the PDU to be forced if the ADU buffer contains information that must be kept.

Examples:: server/callback-server-json/main.cpp.

◆ setSlaveId()

void Modbus::Message::setSlaveId ( int id )

inherited

Sets the number of the slave concerned by the request.

Can be used for all functions. This value is at the offset[-1] of the PDU

◆ setStartingAdress()

void Modbus::Message::setStartingAdress ( uint16_t addr )

inherited

Sets the starting address of the request.

Can be used for the functions Read Coils(01), Read Discrete Inputs(02), Read Holding Registers(03), Read Input Register(04), Write Multiple Coils(15) and Write Multiple Registers(16). This value is at the offset[1] of the PDU

◆ setTransactionIdentifier()

void Modbus::Message::setTransactionIdentifier ( uint16_t tid )

inherited

Sets TCP/IP transaction identifier.

It is used for transaction pairing, the MODBUS server copies in the response the transaction identifier of the request.

This value is at the offset[-7] of the PDU.

Throw an std::domain_error exception if net()!=Tcp,

◆ setWord()

void Modbus::Message::setWord	(	int	pduOffset,
		uint16_t	value
	)

inherited

Write a word in the PDU to the supplied offset.

pduOffset has a maximum value of MaxPduLength-2, it can have a negative value in order to access the wordss of the ADU that precedes the PDU.

◆ size()

size_t Modbus::Message::size ( ) const

inherited

returns the number of bytes of the PDU

Note: Use aduSize() to get the number of bytes of the ADU.

◆ slave()

int Modbus::Message::slave ( ) const

inherited

Returns the number of the slave concerned by the request.

Can be used for all functions. This value is at the offset[-1] of the PDU

◆ startingAddress()

uint16_t Modbus::Message::startingAddress ( ) const

inherited

Returns the starting address of the request.

Can be used for the functions Read Coils(01), Read Discrete Inputs(02), Read Holding Registers(03), Write Multiple Coils(15) and Write Multiple Registers(16). This value is at the offset[1] of the PDU

Examples:: server/callback-server-json/main.cpp.

◆ transactionIdentifier()

uint16_t Modbus::Message::transactionIdentifier ( ) const

inherited

Returns TCP/IP transaction identifier.

It is used for transaction pairing, the MODBUS server copies in the response the transaction identifier of the request.

This value is at the offset[-7] of the PDU.

Throw an std::domain_error exception if net()!=Tcp,

◆ word()

uint16_t Modbus::Message::word ( int pduOffset ) const

inherited

Returns the PDU word corresponding to the offset provided.

pduOffset has a maximum value of MaxPduLength-2, it can have a negative value in order to access the words of the ADU that precedes the PDU.

Public Types

Public Member Functions

Detailed Description

Member Typedef Documentation

◆ Callback

Member Function Documentation

◆ adu() [1/2]

◆ adu() [2/2]

◆ bitValue()

◆ bitValues()

◆ byte()

◆ crc()

◆ exceptionCode()

◆ function()

◆ net()

◆ pdu() [1/2]

◆ pdu() [2/2]

◆ prepareToSend()

◆ print() [1/2]

◆ print() [2/2]

◆ quantity()

◆ registerValue()

◆ registerValues()

◆ setAduSize()

◆ setBitValue()

◆ setBitValues()

◆ setByte()

◆ setByteCount()

◆ setExceptionCode()

◆ setFunction()

◆ setPdu() [1/2]

◆ setPdu() [2/2]

◆ setQuantity()

◆ setRegisterValue()

◆ setRegisterValues()

◆ setResponseFlag()

◆ setSize()

◆ setSlaveId()

◆ setStartingAdress()

◆ setTransactionIdentifier()

◆ setWord()

◆ size()

◆ slave()

◆ startingAddress()

◆ transactionIdentifier()

◆ word()
